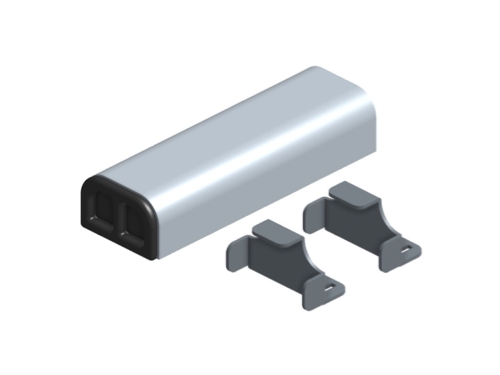

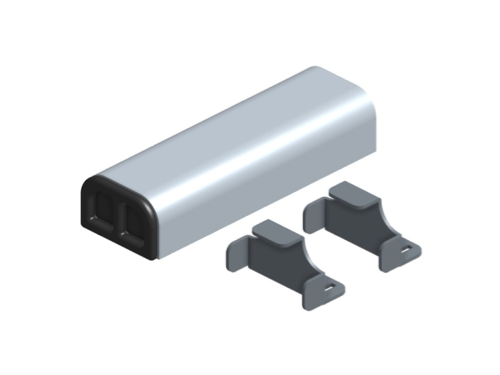

KPN LocationTag III (with GPS)

KPN LocationTag III (with GPS)

Also known as StreamLineTM-2000/P1A3, with GPS.

• Supported network type(s): KPNLORA

• Device Specification ID: kpn-locationtag-iii-gps

• Device Specification UUID: ea870061-8094-4d32-9c14-fd9597780f18

Decoders	decoderSpecificationUUID	Description
+ LoRa Geolocation data	7117d639-c7b0-4d43-ad83-65366dd254b5	Add LoRa Geolocation data to messages where location could be calculated.
+ Location by LoRa On Premises Gateway reception	659631d5-ec8b-4d87-8862-5811259b6ebe	Add location data to messages that are received by known LoRa On Premise Gateways.
› Decoded payload for Asset Tracking application	d0961ee4-919f-4427-9fad-fee7344725a3	Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application.
› Decoded payload for Asset Tracking application (v2)	5ae5fff6-cda5-5612-b7e6-67114e3d885d	Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).
› Decoded payload with motion indication	a6e4ae85-a654-4161-803b-b14eff80b45e	Decoder for Streamline LoRa devices configured with motion indicator configuration.
› Decoded payload with motion indication (v2)	cece0231-ee60-5d1a-8634-d150a066d4bf	Decoder for Streamline LoRa devices configured with motion indicator configuration.

Encoders	encoderSpecificationUUID	Description
‹ Encoded device send interval	47d0c6e4-9cdd-42a9-b6a5-4800e578fd5c	Change the send interval of your Device.

+ LoRa Geolocation data

Add LoRa Geolocation data to messages where location could be calculated.

+ Location by LoRa On Premises Gateway reception

Add location data to messages that are received by known LoRa On Premise Gateways.

› Decoded payload for Asset Tracking application

Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application.

Expected SenML records

name	type	unit
AccX	number	m/s2
AccY	number	m/s2
AccZ	number	m/s2
CompX	number	T
CompY	number	T
CompZ	number	T
DvLat	number	lat
DvLon	number	lon
Heading	number	rad
Io31	boolean
IoButt	boolean
IoMot	boolean
IoRxd	boolean
Speed	number	m/s
Temp	number	Cel
VBat	number	V

› Decoded payload for Asset Tracking application (v2)

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

This decoder also decodes Geolocation and Local Gateway data.

The following SenML records can be present, amongst others:

name	type	unit	example	description
batteryVoltage	number	V
devEui	string			Not present in detail level 1 messages
DvLat	number	lat		Latitude
DvLon	number	lon		Longitude
firmwareCRC	string			Not present in detail level 1 messages
firmwareVersion	string			Not present in detail level 1 messages
gpsActiveStill	boolean		true
gpsFixStill	boolean		true
gpsModuleActive	boolean		true	Not present in detail level 1 messages
nfcScanned	boolean		true
nfcState	string			Not present in detail level 1 messages
nrOfLoraTransmissions	number			Not present in detail level 1 messages
orientationX	number			Not present in detail level 1 messages
orientationY	number			Not present in detail level 1 messages
powerupTime	number	min		Not present in detail level 1 messages
rotationCount	number
rotationLeft	number			Not present in detail level 1 messages
rotationRight	number			Not present in detail level 1 messages
settingsCRC	string			Not present in detail level 1 messages
status	string			Not present in detail level 1 messages
temperature	number	Cel	18.334
transmissionTime	number	s		Not present in detail level 1 messages

Example SenML

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about Understanding and Interpreting SenML Data.

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "gpsActiveStill",
        "vb": true
    },
    {
        "n": "gpsFixStill",
        "vb": true
    },
    {
        "n": "nfcScanned",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3
    },
    {
        "n": "DvLat",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "DvLon",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "rotationCount",
        "v": 154
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 1
    },
    {
        "n": "firmwareVersion",
        "vs": "cdab"
    },
    {
        "n": "firmwareCRC",
        "vs": "2143"
    },
    {
        "n": "settingsCRC",
        "vs": "7698"
    },
    {
        "n": "gpsModuleActive",
        "vb": true
    },
    {
        "n": "nfcState",
        "vs": "NFC_OFF"
    },
    {
        "n": "powerupTime",
        "u": "min",
        "v": 872379
    },
    {
        "n": "transmissionTime",
        "u": "s",
        "v": 238792
    },
    {
        "n": "nrOfLoraTransmissions",
        "v": 55
    },
    {
        "n": "devEui",
        "vs": "babcdef012"
    },
    {
        "n": "rotationLeft",
        "v": 3407873
    },
    {
        "n": "rotationRight",
        "v": 1507507
    },
    {
        "n": "orientationX",
        "v": 122
    },
    {
        "n": "orientationY",
        "v": 12
    },
    {
        "n": "status",
        "vs": "9a"
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

› Decoded payload with motion indication

Decoder for Streamline LoRa devices configured with motion indicator configuration.

Expected SenML records

name	type	unit
AccX	number	m/s2
AccY	number	m/s2
AccZ	number	m/s2
CompX	number	T
CompY	number	T
CompZ	number	T
DvLat	number	lat
DvLon	number	lon
GpsFix	string
Heading	number	rad
Io31	boolean
IoButt	boolean
IoMot	boolean
IoRxd	boolean
Speed	number	m/s
Temp	number	Cel
VBat	number	V
movementIndication	string

› Decoded payload with motion indication (v2)

Decoder for Streamline LoRa devices configured with motion indicator configuration.

This decoder also decodes Geolocation and Local Gateway data.

The following SenML records can be present, amongst others:

name	type	unit	example	description
AccX	number	m/s2	-1.3	Measured acceleration in the X-axis
AccY	number	m/s2	-0.5	Measured acceleration in the Y-axis
AccZ	number	m/s2	3.0	Measured acceleration in the Z-axis
CompX	number	T	0.0000010	Measured compass orientation in the X-axis
CompY	number	T	-0.001507	Measured compass orientation in the Y-axis
CompZ	number	T	-0.002638	Measured compass orientation in the Z-axis
DvLat	number	lat	51.90717	Latitude
DvLon	number	lon	4.48940	Longitude
GpsFix	string		"RECENT"	Either "RECENT" or "OUTDATED"
Heading	number	rad	3.316
Io31	number		1.0	arbitrary bit
IoButt	number		1.0	whether the Device's button was pressed
IoMot	number		1.0	whether the Device is in motion
IoRxd	number		1.0	Device's external digital i/o value
movementIndication	string		"STATIONARY"	Either "STATIONARY", "STOP", "START" or "MOVING"
Speed	number	m/s	4.12
Temp	string	Cel	7.0	Temperature
VBat	number	V	3.59	Battery voltage

Example SenML

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about Understanding and Interpreting SenML Data.

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1701882708.84,
        "n": "DvLon",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "DvLat",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "Speed",
        "u": "m/s",
        "v": 4.12
    },
    {
        "n": "Heading",
        "u": "rad",
        "v": -3.944
    },
    {
        "n": "IoButt",
        "v": 1.0
    },
    {
        "n": "IoRxd",
        "v": 1.0
    },
    {
        "n": "IoMot",
        "v": 0.0
    },
    {
        "n": "Io31",
        "v": 0.0
    },
    {
        "n": "AccX",
        "u": "m/s2",
        "v": 9.5002
    },
    {
        "n": "AccY",
        "u": "m/s2",
        "v": 0.7661
    },
    {
        "n": "AccZ",
        "u": "m/s2",
        "v": 0.1532
    },
    {
        "n": "CompX",
        "u": "T",
        "v": 0.0000010
    },
    {
        "n": "CompY",
        "u": "T",
        "v": -0.001507
    },
    {
        "n": "CompZ",
        "u": "T",
        "v": -0.002638
    },
    {
        "n": "Temp",
        "u": "Cel",
        "v": 7.0
    },
    {
        "n": "movementIndication",
        "vs": "STATIONARY"
    },
    {
        "n": "GpsFix",
        "vs": "RECENT"
    },
    {
        "n": "VBat",
        "u": "V",
        "v": 3.59
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

‹ Encoded device send interval

• Protocol: LoRa downlink

• Description: Change the send interval of your Device.

• Multiple commands in one downlink: No

Input mapping:

• Name: interval

  • Value: 2h (translates into → 1500b402201c1500b802201c16)
