# KPN Conditionsensor CO2 II

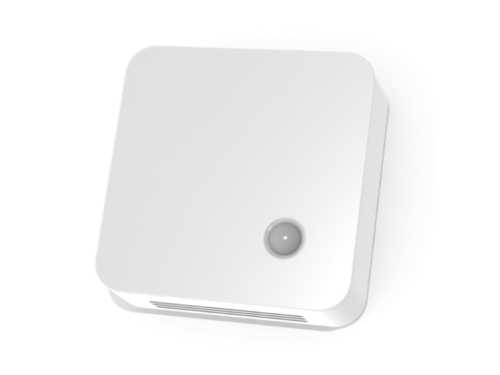

Also known as Elsys ERS device. A Smart Building Sensor for indoor environment monitoring.
* Supported network type(s): `KPNLORA`
* Device Specification ID: `kpn-conditionsensor-co2-ii`
* Device Specification UUID: `1dafa763-a81c-4452-a593-0517cd55e4d0`
| Decoders | decoderSpecificationUUID | Description |
| ------------------------------------------------- | -------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------ |
| + LoRa Geolocation data | `cd23156d-6b57-42fd-b6f5-ecacd6c9bcb1` | Add [LoRa Geolocation](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data to messages where location could be calculated. |
| › Decoded payload for environment monitoring | `0645c267-8879-4e5f-82ee-1aec1b57c5c3` | Decoder for v9 Elsys ERS payload. |
| › Decoded payload for environment monitoring (v2) | `755d7ac5-7318-5285-95e8-e3324e17ff88` | Decoder for Elsys ERS payloads. Fixes bugs in '› Decoded payload for environment monitoring' |
| Encoders | encoderSpecificationUUID | Description |
| ------------------------- | -------------------------------------- | --------------------------------------------------------------------- |
| ‹ Encoded device commands | `ad77f15c-5ddb-4339-8856-d3bdc4606e08` | Set the send interval and reboot, or let device calibrate CO2 Sensor. |
### + LoRa Geolocation data
Add [LoRa Geolocation](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data to messages where location could be calculated.
### › Decoded payload for environment monitoring
Decoder for v9 Elsys ERS payload.
**Expected SenML records**
| name | type | unit |
| --------------------- | ------- | ----- |
| CO2Concentration | number | ppm |
| Pulse2 | number | count |
| accelerationX | number | m/s2 |
| accelerationY | number | m/s2 |
| accelerationZ | number | m/s2 |
| analog1 | number | V |
| analog2 | number | V |
| batteryVoltage | number | V |
| digitalExternal | boolean | |
| digitalIn2 | boolean | |
| distance | number | m |
| grideye | number | Cel |
| grideye0-0 | number | Cel |
| grideye0-1 | number | Cel |
| grideye0-2 | number | Cel |
| grideye0-3 | number | Cel |
| grideye0-4 | number | Cel |
| grideye0-5 | number | Cel |
| grideye0-6 | number | Cel |
| grideye0-7 | number | Cel |
| grideye1-0 | number | Cel |
| grideye1-1 | number | Cel |
| grideye1-2 | number | Cel |
| grideye1-3 | number | Cel |
| grideye1-4 | number | Cel |
| grideye1-5 | number | Cel |
| grideye1-6 | number | Cel |
| grideye1-7 | number | Cel |
| grideye2-0 | number | Cel |
| grideye2-1 | number | Cel |
| grideye2-2 | number | Cel |
| grideye2-3 | number | Cel |
| grideye2-4 | number | Cel |
| grideye2-5 | number | Cel |
| grideye2-6 | number | Cel |
| grideye2-7 | number | Cel |
| grideye3-0 | number | Cel |
| grideye3-1 | number | Cel |
| grideye3-2 | number | Cel |
| grideye3-3 | number | Cel |
| grideye3-4 | number | Cel |
| grideye3-5 | number | Cel |
| grideye3-6 | number | Cel |
| grideye3-7 | number | Cel |
| grideye4-0 | number | Cel |
| grideye4-1 | number | Cel |
| grideye4-2 | number | Cel |
| grideye4-3 | number | Cel |
| grideye4-4 | number | Cel |
| grideye4-5 | number | Cel |
| grideye4-6 | number | Cel |
| grideye4-7 | number | Cel |
| grideye5-0 | number | Cel |
| grideye5-1 | number | Cel |
| grideye5-2 | number | Cel |
| grideye5-3 | number | Cel |
| grideye5-4 | number | Cel |
| grideye5-5 | number | Cel |
| grideye5-6 | number | Cel |
| grideye5-7 | number | Cel |
| grideye6-0 | number | Cel |
| grideye6-1 | number | Cel |
| grideye6-2 | number | Cel |
| grideye6-3 | number | Cel |
| grideye6-4 | number | Cel |
| grideye6-5 | number | Cel |
| grideye6-6 | number | Cel |
| grideye6-7 | number | Cel |
| grideye7-0 | number | Cel |
| grideye7-1 | number | Cel |
| grideye7-2 | number | Cel |
| grideye7-3 | number | Cel |
| grideye7-4 | number | Cel |
| grideye7-5 | number | Cel |
| grideye7-6 | number | Cel |
| grideye7-7 | number | Cel |
| humidity | number | %RH |
| illuminance | number | lx |
| lattitude | number | lat |
| longitude | number | lon |
| motion | number | count |
| occupancy | number | count |
| pressure | number | Pa |
| pulse | number | count |
| pulseAbsolute | number | count |
| pulseAbsolute2 | number | count |
| soundAverage | number | dB |
| soundPeak | number | dB |
| temperature | number | Cel |
| temperatureExternal1 | number | Cel |
| temperatureExternal2 | number | Cel |
| temperatureIRExternal | number | Cel |
| temperatureIRInternal | number | Cel |
| waterLeak | number | count |
### › Decoded payload for environment monitoring (v2)
Decoder for Elsys ERS payloads. Fixes bugs in '› Decoded payload for environment monitoring':
* `distance` was incorrectly converted to `dm` instead of `m`. Now the containing value is in meters.
* `soundAverage` was decoded incorrectly, resulting in a number that is way too large.
* `soundPeak` was decoded incorrectly, resulting in a number that is way too large.
* The `grideye` fields were decoded incorrectly, where most results would be too big.
* Time offsets were added as positive `t`s instead of negative `t`s.
* `acceleration` values were processed as unsigned values, but they should have been processed as signed values.
{% hint style="info" %}
This decoder also decodes [Geolocation and Local Gateway](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data.
{% endhint %}
The following SenML records can be present, amongst others:
| name | type | unit | example | description |
| --------------------- | ------- | ----- | --------------------- | -------------------------------------------------------------------------------------------------- |
| accelerationX | number | m/s2 | `0.31132222222222217` | |
| accelerationY | number | m/s2 | `15.566111111111107` | |
| accelerationZ | number | m/s2 | `13.231194444444442` | |
| analog1 | number | V | `35.124` | External analog input voltage |
| analog2 | number | V | `49.287` | |
| batteryVoltage | number | V | `3.596` | |
| CO2Concentration | number | ppm | `638` | |
| CO2 | number | ppm | `638` | contains the same value as `CO2Concentration` and is included for backwards compatibility |
| digitalExternal | boolean | | `false` | |
| digitalIn2 | boolean | | `false` | |
| distance | number | m | `261.42` | |
| grideye0-0 | number | Cel | `21.234` | All the `grideye` fields combined make up the room infrared temperature. |
| grideye0-1 | number | Cel | | |
| grideye0-2 | number | Cel | | |
| grideye0-3 | number | Cel | | |
| grideye0-4 | number | Cel | | |
| grideye0-5 | number | Cel | | |
| grideye0-6 | number | Cel | | |
| grideye0-7 | number | Cel | | |
| grideye1-0 | number | Cel | | |
| grideye1-1 | number | Cel | | |
| grideye1-2 | number | Cel | | |
| grideye1-3 | number | Cel | | |
| grideye1-4 | number | Cel | | |
| grideye1-5 | number | Cel | | |
| grideye1-6 | number | Cel | | |
| grideye1-7 | number | Cel | | |
| grideye2-0 | number | Cel | | |
| grideye2-1 | number | Cel | | |
| grideye2-2 | number | Cel | | |
| grideye2-3 | number | Cel | | |
| grideye2-4 | number | Cel | | |
| grideye2-5 | number | Cel | | |
| grideye2-6 | number | Cel | | |
| grideye2-7 | number | Cel | | |
| grideye3-0 | number | Cel | | |
| grideye3-1 | number | Cel | | |
| grideye3-2 | number | Cel | | |
| grideye3-3 | number | Cel | | |
| grideye3-4 | number | Cel | | |
| grideye3-5 | number | Cel | | |
| grideye3-6 | number | Cel | | |
| grideye3-7 | number | Cel | | |
| grideye4-0 | number | Cel | | |
| grideye4-1 | number | Cel | | |
| grideye4-2 | number | Cel | | |
| grideye4-3 | number | Cel | | |
| grideye4-4 | number | Cel | | |
| grideye4-5 | number | Cel | | |
| grideye4-6 | number | Cel | | |
| grideye4-7 | number | Cel | | |
| grideye5-0 | number | Cel | | |
| grideye5-1 | number | Cel | | |
| grideye5-2 | number | Cel | | |
| grideye5-3 | number | Cel | | |
| grideye5-4 | number | Cel | | |
| grideye5-5 | number | Cel | | |
| grideye5-6 | number | Cel | | |
| grideye5-7 | number | Cel | | |
| grideye6-0 | number | Cel | | |
| grideye6-1 | number | Cel | | |
| grideye6-2 | number | Cel | | |
| grideye6-3 | number | Cel | | |
| grideye6-4 | number | Cel | | |
| grideye6-5 | number | Cel | | |
| grideye6-6 | number | Cel | | |
| grideye6-7 | number | Cel | | |
| grideye7-0 | number | Cel | | |
| grideye7-1 | number | Cel | | |
| grideye7-2 | number | Cel | | |
| grideye7-3 | number | Cel | | |
| grideye7-4 | number | Cel | | |
| grideye7-5 | number | Cel | | |
| grideye7-6 | number | Cel | | |
| grideye7-7 | number | Cel | | |
| humidity | number | %RH | `34` | |
| illuminance | number | lx | `56273` | |
| motion | number | count | `5` | Number of detected PIR motions |
| occupancy | number | count | `0` | 0: No detection
1: Entering/leaving
2:Occupied
|
| pressure | number | Pa | `102900` | |
| pulse | number | count | | Relative value, reset every transmission |
| Pulse2 | number | count | | Relative value, reset every transmission |
| pulseAbsolute | number | count | | Absolute value, never reset |
| pulseAbsolute2 | number | count | | Absolute value, never reset |
| soundAverage | number | dB | `42` | |
| soundPeak | number | dB | `80` | |
| temperature | number | Cel | `23.5` | |
| temperatureExternal1 | number | Cel | | |
| temperatureExternal2 | number | Cel | | |
| temperatureIRExternal | number | Cel | `24.9` | |
| temperatureIRInternal | number | Cel | `23.3` | |
| waterLeak | number | count | | |
