KPN FillTag I

PreviousKPN Conditionsensor CO2 III motionPage 1NextKPN FillTag II

Last updated 5 months ago

Was this helpful?

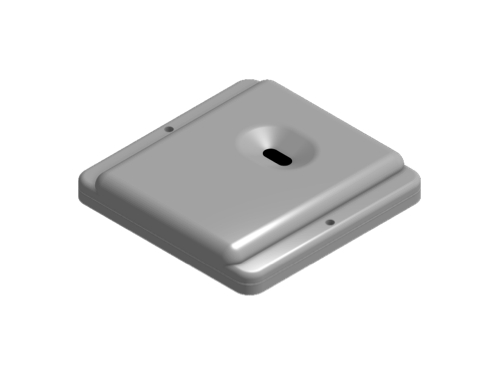

KPN FillTag I

First FillTag device for Waste Control application, also known as Streamline Waste device.

  • Supported network type(s): KPNLORA

  • Device Specification ID: kpn-filltag-i

  • Device Specification UUID: 5064c9de-36c8-4a69-8edd-636c6df94332

Decoders
decoderSpecificationUUID
Description

+ LoRa Geolocation data

4c0bf70f-cde5-4f5a-aac2-8480a875ec86

› Decoded payload for Waste Control application

0a56df75-1b4d-407b-b534-a20cf22cd13e

Decoder for Streamline LoRa message type 0xD282.

› Decoded payload for Waste Control application (v2)

41fdc428-12cb-52b0-9e0c-e160b97bdcd5

Decodes fields from a Streamline LoRa payload, specifically for waste control application.

+ LoRa Geolocation data

› Decoded payload for Waste Control application

Decoder for Streamline LoRa message type 0xD282.

Expected SenML records

name
type
unit

batteryLevelLow

boolean

/

batteryLevelLow_beacon

boolean

/

count_LidOpen

number

detectedBeacon

string

distance

number

m

distanceMeasurementIsValid

boolean

/

lidOpenedSincePreviousTransmission

boolean

/

temperature

number

Cel

Decoded payload for Waste Control application

Decodes fields from a Streamline LoRa payload, specifically for waste control application.

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryLevelLow

boolean

true

batteryLevelLow_beacon

boolean

false

the battery level low indication of the detected beacon

count_LidOpen

number

1

number of times the bin lid has been opened

detectedBeacon

string

"a1e2093368d4e7b8"

DevEUI of the last detected beacon

distance

number

m

0.684

distance to the detected object from the fill sensor

distanceMeasurementIsValid

boolean

true

lidOpenedSincePreviousTransmission

boolean

true

temperature

number

Cel

18.875

timeOrigin

string

NETWORK

the source of time information for measurements

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:4227c7e44ee76d1e:",
        "bt": 1693136532.83,
        "n": "detectedBeacon",
        "vs": "a1e2093368d4e7b8"
    },
    {
        "n": "count_LidOpen",
        "v": 1
    },
    {
        "n": "batteryLevelLow",
        "vb": true
    },
    {
        "n": "batteryLevelLow_beacon",
        "vb": false
    },
    {
        "n": "distance",
        "u": "m",
        "v": 0.684
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 18.875
    },
    {
        "n": "lidOpenedSincePreviousTransmission",
        "vb": true
    },
    {
        "n": "distanceMeasurementIsValid",
        "vb": true
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

Add data to messages where location could be calculated.

Add data to messages where location could be calculated.

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

LoRa Geolocation
Geolocation and Local Gateway
Understanding and Interpreting SenML Data
LoRa Geolocation
