KPN FillTag II

PreviousKPN FillTag INext1M2M ED1608

Last updated 6 months ago

Was this helpful?

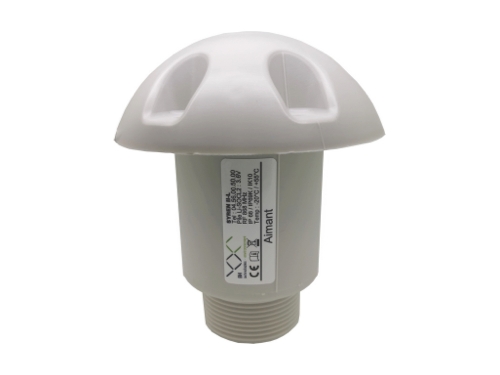

KPN FillTag II

FillTag device for Waste Control applications, also known as Syren II-L Waste device.

  • Supported network type(s): KPNLORA

  • Device Specification ID: kpn-filltag-ii

  • Device Specification UUID: c2a13e2e-6aba-4932-9499-97ae3e825de9

Decoders
decoderSpecificationUUID
Description

Syren II-L hex based decoder (v2)

590af144-3a1b-5742-b06d-0d187ea954a2

Decoder for Syren II-L payloads.

› Syren II-L hex based decoder

d1d4fafd-315c-439a-a6ea-fcfb33bff701

Syren II-L hex based decoder

Syren II-L hex based decoder (v2)

Decoder for Syren II-L payloads.

The following SenML records can be present, amongst others:

name
type
unit
example
description

distance

number

m

2.33

interval

number

s

14400

measurementInterval

number

s

900

Based on numberOfMeasurements, additional distance records with n times the measurementInterval negative t might be present

numberOfMeasurements

number

12

The n amount of distance measurements

productId

number

12802

rfu

number

0

serialNumber

number

18173

temperature

number

Cel

16

type

number

1

version

number

49

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "serialNumber",
        "v": 18173
    },
    {
        "n": "productId",
        "v": 12802
    },
    {
        "n": "type",
        "v": 1
    },
    {
        "n": "version",
        "v": 49
    },
    {
        "n": "measurementInterval",
        "u": "s",
        "v": 900
    },
    {
        "n": "interval",
        "u": "s",
        "v": 14400
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 16
    },
    {
        "n": "rfu",
        "v": 0
    },
    {
        "n": "numberOfMeasurements",
        "v": 12
    },
    {
        "n": "distance",
        "u": "m",
        "v": 0.61
    },
    {
        "n": "distance",
        "t": -900,
        "u": "m",
        "v": 0.61
    },
    {
        "n": "distance",
        "t": -1800,
        "u": "m",
        "v": 0.62
    },
    {
        "n": "distance",
        "t": -2700,
        "u": "m",
        "v": 2.33
    },
    {
        "n": "distance",
        "t": -3600,
        "u": "m",
        "v": 2.33
    },
    {
        "n": "distance",
        "t": -4500,
        "u": "m",
        "v": 1.42
    },
    {
        "n": "distance",
        "t": -5400,
        "u": "m",
        "v": 1.43
    },
    {
        "n": "distance",
        "t": -6300,
        "u": "m",
        "v": 1.44
    },
    {
        "n": "distance",
        "t": -7200,
        "u": "m",
        "v": 1.42
    },
    {
        "n": "distance",
        "t": -8100,
        "u": "m",
        "v": 1.43
    },
    {
        "n": "distance",
        "t": -9000,
        "u": "m",
        "v": 1.42
    },
    {
        "n": "distance",
        "t": -9900,
        "u": "m",
        "v": 1.43
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

› Syren II-L hex based decoder

Syren II-L hex based decoder

Expected SenML records

name
type
unit

codeIncident

number

distance

number

m

interval

number

s

measurementInterval

number

s

numberOfMeasurements

number

productId

number

rfu

number

serialNumber

number

temperature

number

Cel

type

number

version

number

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .
