# 1M2M ED1608

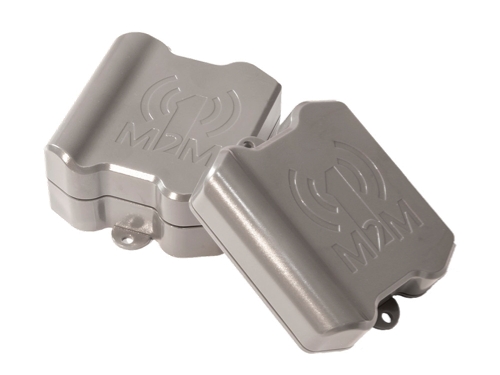

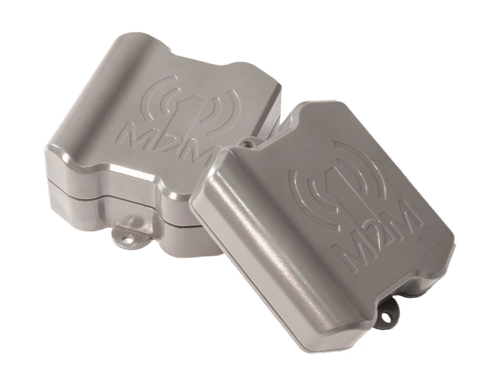

![1M2M ED1608](https://portal.kpnthings.com/assets/images/device-types/supported-1m2m-ed1608.png)

For the complete 1M2M ED1608 series running default firmware, Full, Basic and Radio-Only.

* Supported network type(s): `KPNLORA`
* Device Specification ID: `supported-1m2m-ed1608`
* Device Specification UUID: `0eb7379d-881a-42b2-a4d6-abe1f9fa205c`

| Decoders                           | decoderSpecificationUUID               | Description                                                                                                                                            |
| ---------------------------------- | -------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------ |
| + LoRa Geolocation data            | `0e10de71-eed6-49de-8885-5afc9bfc456f` | Add [LoRa Geolocation](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data to messages where location could be calculated. |
| = Raw LoRa payload                 | `b2bcfe4e-b90b-451a-ad2b-ae6c9223d2a1` | Forward the raw LoRa payload and port number without decoding.                                                                                         |
| = Raw LoRa payload (v2)            | `1cef4804-79b0-5fd3-8f59-3919218d1793` | Forward the raw LoRa payload and port number without decoding.                                                                                         |
| › Decoded 1M2M ED16xx payload      | `4407fc62-a756-49bd-9e91-491c5acfa411` | Decoder for all messages from devices with default 1M2M ED16xx firmware.                                                                               |
| › Decoded 1M2M ED16xx payload (v2) | `7492bd93-668a-5e15-8e28-859c2bc40e9d` | Decoder for all messages from devices with default 1M2M ED16xx firmware.                                                                               |

| Encoders           | encoderSpecificationUUID               | Description                           |
| ------------------ | -------------------------------------- | ------------------------------------- |
| = Raw LoRa payload | `f1d9c695-8fa5-4626-b55c-0bdc4bddf7dc` | Send raw LoRa payload to your device. |

### + LoRa Geolocation data

Add [LoRa Geolocation](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data to messages where location could be calculated.

### = Raw LoRa payload

Forward the raw LoRa payload and port number without decoding.

**Expected SenML records**

| name    | type   | unit |
| ------- | ------ | ---- |
| payload | string |      |
| port    | number |      |

### = Raw LoRa payload (v2)

Forward the raw LoRa payload and port number without decoding.

{% hint style="info" %}
This decoder also decodes [Geolocation and Local Gateway](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data.
{% endhint %}

The following SenML records can be present, amongst others:

| name    | type   | unit | example                    | description                            |
| ------- | ------ | ---- | -------------------------- | -------------------------------------- |
| payload | string |      | `"4D985C495AC4D8C9682CFD"` | The LoRa hex payload                   |
| port    | number |      | `200`                      | The LoRa port used to send this uplink |

#### Example SenML

{% hint style="info" %}
SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about [Understanding and Interpreting SenML Data](/kpn-things/building-blocks/data-processing/thingsml-and-senml/senml/understanding-and-interpreting-senml-data.md).
{% endhint %}

```json
[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "payload",
        "vs": "4D985C495AC4D8C9682CFD"
    },
    {
        "n": "port",
        "v": 1
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]
```

### › Decoded 1M2M ED16xx payload

Decoder for all messages from devices with default 1M2M ED16xx firmware.

**Expected SenML records**

| name         | type   | unit  |
| ------------ | ------ | ----- |
| AnIn1        | number | V     |
| AnIn2        | number | V     |
| AnIn3        | number | V     |
| AnIn4        | number | V     |
| Barom        | number | P     |
| BeamX        | number | rad   |
| BeamY        | number | rad   |
| BeamZ        | number | rad   |
| CmdAck       | number |       |
| Count        | number | Count |
| FixAge       | number |       |
| GravX        | number |       |
| GravY        | number |       |
| GravZ        | number |       |
| MagX         | number |       |
| MagY         | number |       |
| MagZ         | number |       |
| Max1Amp      | number |       |
| Max1Freq     | number | Hz    |
| Max2Amp      | number |       |
| Max2Freq     | number | Hz    |
| Max3Amp      | number |       |
| Max3Freq     | number | Hz    |
| MaxBaro      | number | P     |
| MaxDx        | number |       |
| MaxDy        | number |       |
| MaxDz        | number |       |
| MaxHum       | number | %RH   |
| MaxTemp      | number | Cel   |
| MinBaro      | number | P     |
| MinHum       | number | %RH   |
| MinTemp      | number | Cel   |
| Mod          | number |       |
| NumSat       | number |       |
| Ow0          | number | Cel   |
| Ow1          | number | Cel   |
| Ow2          | number | Cel   |
| Ow3          | number | Cel   |
| Ow4          | number | Cel   |
| RepMod       | number |       |
| RunHrs       | number | Count |
| Status       | number |       |
| Timer        | number | Count |
| VibAmp       | number |       |
| VibFrq       | number | Hz    |
| VibGai       | number |       |
| batteryLevel | number | %EL   |
| batteryLevel | number | V     |
| distance     | number | m     |
| humidity     | number | %RH   |
| latitude     | number | lat   |
| longitude    | number | lon   |
| profile      | number |       |
| temperature  | number | Cel   |

### › Decoded 1M2M ED16xx payload (v2)

Decoder for all messages from devices with default 1M2M ED16xx firmware.

Bugfixes from '› Decoded 1M2M ED16xx payload':

* `latitude` and `longitude` were not always decoded correctly.
* `fixAge` was not decoded correctly for values above 60 minutes.

{% hint style="info" %}
This decoder also decodes [Geolocation and Local Gateway](/kpn-things/getting-started/tutorials/technical-overview/location-data.md) data.
{% endhint %}

The following SenML records can be present, amongst others:

| name         | type    | unit  | example               | description |
| ------------ | ------- | ----- | --------------------- | ----------- |
| AnIn1        | number  | V     | `4`                   |             |
| AnIn2        | number  | V     | `2.564`               |             |
| AnIn3        | number  | V     | `0.291`               |             |
| AnIn4        | number  | V     | `0`                   |             |
| Barom        | number  | P     | `200000`              |             |
| batteryLevel | number  | %EL   | `100`                 |             |
| batteryLevel | number  | V     | `12`                  |             |
| BeamX        | number  | rad   | `-1.3864721044917754` |             |
| BeamY        | number  | rad   | `0.90795518347249`    |             |
| BeamZ        | number  | rad   | `-1.1533484763028927` |             |
| CmdAck       | number  |       | `3`                   |             |
| Count        | number  | Count | `55588351`            |             |
| Dig1Al       | boolean |       | `true`                |             |
| Dig2Al       | boolean |       | `true`                |             |
| distance     | number  | m     | `801000`              |             |
| FixAge       | number  |       | `4170`                |             |
| GeoAl        | boolean |       | `true`                |             |
| GravX        | number  |       | `32`                  |             |
| GravY        | number  |       | `64`                  |             |
| GravZ        | number  |       | `127`                 |             |
| GrvRot       | boolean |       | `true`                |             |
| humidity     | number  | %RH   | `85`                  |             |
| latitude     | number  | lat   | `47.52521`            |             |
| longitude    | number  | lon   | `4.49031`             |             |
| MagRot       | boolean |       | `true`                |             |
| MagX         | number  |       | `-96`                 |             |
| MagY         | number  |       | `50`                  |             |
| MagZ         | number  |       | `17`                  |             |
| Max1Amp      | number  |       | `164`                 |             |
| Max1Freq     | number  | Hz    | `273`                 |             |
| Max2Amp      | number  |       | `68`                  |             |
| Max2Freq     | number  | Hz    | `464`                 |             |
| Max3Amp      | number  |       | `20`                  |             |
| Max3Freq     | number  | Hz    | `654`                 |             |
| MaxBaro      | number  | P     | `0.00127`             |             |
| MaxDx        | number  |       | `127`                 |             |
| MaxDy        | number  |       | `64`                  |             |
| MaxDz        | number  |       | `32`                  |             |
| MaxHum       | number  | %RH   | `85`                  |             |
| MaxTemp      | number  | Cel   | `0.8`                 |             |
| MinBaro      | number  | P     | `0.00035`             |             |
| MinHum       | number  | %RH   | `69`                  |             |
| MinTemp      | number  | Cel   | `0.64`                |             |
| Mod          | number  |       | `1`                   |             |
| MotAl        | boolean |       | `true`                |             |
| Move         | boolean |       | `false`               |             |
| NumSat       | number  |       | `7`                   |             |
| Ow0          | number  | Cel   | `42`                  |             |
| Ow1          | number  | Cel   | `42`                  |             |
| Ow2          | number  | Cel   | `42`                  |             |
| Ow3          | number  | Cel   | `42`                  |             |
| Ow4          | number  | Cel   | `42`                  |             |
| profile      | number  |       | `0`                   |             |
| RepMod       | number  |       | `2`                   |             |
| RunHrs       | number  | Count | `291`                 |             |
| ShkAl        | boolean |       | `true`                |             |
| Start        | boolean |       | `true`                |             |
| Status       | number  |       | `0`                   |             |
| Stop         | boolean |       | `false`               |             |
| temperature  | number  | Cel   | `18.92`               |             |
| Timer        | number  | Count | `69616`               |             |
| VibAl        | boolean |       | `true`                |             |
| VibAmp       | number  |       | `0`                   |             |
| VibFrq       | number  | Hz    | `0`                   |             |
| VibGai       | number  |       | `4`                   |             |
| Vibr         | boolean |       | `false`               |             |

#### Example SenML

{% hint style="info" %}
SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about [Understanding and Interpreting SenML Data](/kpn-things/building-blocks/data-processing/thingsml-and-senml/senml/understanding-and-interpreting-senml-data.md).
{% endhint %}
