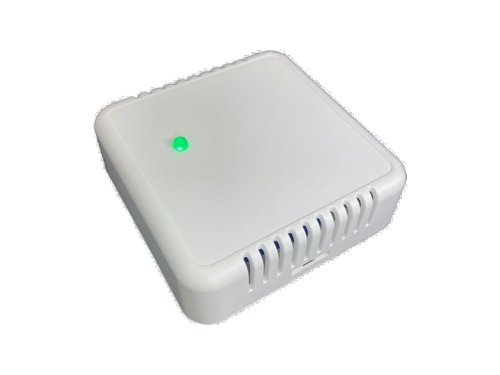

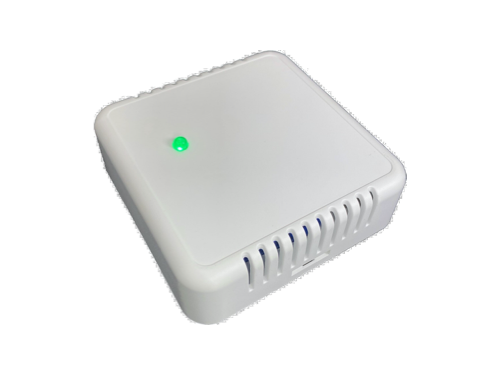

KPN Conditionsensor CO2 III

Also known as Streamline CO2 sensor. A Smart Building Sensor for indoor environment monitoring.

Supported network type(s): KPNLORA
Device Specification ID: kpn-conditionsensor-co2-iii
Device Specification UUID: 7a7c579f-8ce7-4667-bbd6-280902a55948

Decoders

decoderSpecificationUUID

Description

› Decoded payload for environment monitoring

aa611ae0-cb5d-44bc-bac7-ca6c48885ae1

Decoder for Streamline LoRa message type 0xB0 with CO2 data.

› Decoded payload for environment monitoring (v2)

b7f9d5b8-3d4c-5b07-888f-15f67e972277

Decoder for Streamline LoRa message type 0xB0 and 0xB1 with CO2 data.

› Decoded payload for environment monitoring

UUID: aa611ae0-cb5d-44bc-bac7-ca6c48885ae1
Description: Decoder for Streamline LoRa message type 0xB0 with CO2 data.
Exchange: decoder.lora.streamline.exchange

Expected SenML outputs

name

type/unit

example

description

batteryVoltage

3.5

The battery voltage of the device

VOC

ppm

The concentration of Volatile Organic Compounds in parts per million

CO2Concentration

ppm

CO2 Concentration in parts per million

pressure

The air pressure in Pascal

humidity

%HR

The humidity percentage

temperature

Cel

The measured temperature in Celcius

motion

count

Number of times motion has been detected?

movementSensorActiveDuration

Number of seconds the movement sensor has been active

movementDetected

boolean

Boolean indicating whether movement was detected or not

Example SenML-message

[
  { bn: 'urn:dev:DEVEUI:7CC6C40512345678:', bt: 1.701114926e9 },
  { n: 'temperature', u: 'Cel', v: 18.8 },
  { n: 'humidity', u: '%RH', v: 42.0 },
  { n: 'CO2Concentration', u: 'ppm', v: 567.0 },
  { n: 'pressure', u: 'Pa', v: 99200.0 },
  { n: 'VOC', u: 'ppm', v: 0.0 },
  { n: 'batteryVoltage', u: 'V', v: 3.8 },
  { n: 'movementSensorActiveDuration', u: 's', v: 1200.0 },
  { n: 'motion', u: 'count', v: 0.0 },
  { n: 'movementDetected', vb: false },
  { n: 'movementDetected', t: -60.0, vb: false },
  { n: 'movementDetected', t: -120.0, vb: false },
  { n: 'movementDetected', t: -180.0, vb: false },
  { n: 'movementDetected', t: -240.0, vb: false },
  { n: 'movementDetected', t: -300.0, vb: false },
  { n: 'movementDetected', t: -360.0, vb: false },
  { n: 'movementDetected', t: -420.0, vb: false },
  { n: 'movementDetected', t: -480.0, vb: false },
  { n: 'movementDetected', t: -540.0, vb: false },
  { n: 'movementDetected', t: -600.0, vb: false },
  { n: 'movementDetected', t: -660.0, vb: false },
  { n: 'movementDetected', t: -720.0, vb: false },
  { n: 'movementDetected', t: -780.0, vb: false },
  { n: 'movementDetected', t: -840.0, vb: false },
  { n: 'movementDetected', t: -900.0, vb: false },
  { n: 'movementDetected', t: -960.0, vb: false },
  { n: 'movementDetected', t: -1020.0, vb: false },
  { n: 'movementDetected', t: -1080.0, vb: false },
  { n: 'movementDetected', t: -1140.0, vb: false },
  { n: 'movementDetected', t: -1200.0, vb: false },
  { n: 'movementDetected', t: -1260.0, vb: false },
  { n: 'movementDetected', t: -1320.0, vb: false },
  { n: 'movementDetected', t: -1380.0, vb: false },
  { n: 'movementDetected', t: -1440.0, vb: false },
  { n: 'movementDetected', t: -1500.0, vb: false },
  { n: 'movementDetected', t: -1560.0, vb: false },
  { n: 'movementDetected', t: -1620.0, vb: false },
  { n: 'movementDetected', t: -1680.0, vb: false },
  { n: 'movementDetected', t: -1740.0, vb: false },
  { n: 'movementDetected', t: -1800.0, vb: false },
  { n: 'movementDetected', t: -1860.0, vb: false },
  { n: 'TIME_ORIGIN', vs: 'THINGSENGINE' },
]

› Decoded payload for environment monitoring (v2)

Decoder for Streamline LoRa message type 0xB0 and 0xB1 with CO2 data.

This decoder also decodes Geolocation and Local Gateway data.

The following SenML records can be present, amongst others:

name

type

unit

example

description

batteryVoltage

number

3.46

The battery voltage of the device

CO2Concentration

number

ppm

689

CO2 Concentration in parts per million

humidity

number

%RH

58.33

The humidity percentage

motion

number

count

29

Number of times motion has been detected?

movementDetected

boolean

true

Boolean indicating whether movement was detected or not

movementSensorActiveDuration

number

20

Number of seconds the movement sensor has been active

pressure

number

101100

The air pressure in Pascal

temperature

number

Cel

21.34

The measured temperature in Celcius

VOC

number

ppm

0.065

The concentration of Volatile Organic Compounds in parts per million

Example SenML

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about Understanding and Interpreting SenML Data.

0xB0 payload

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "temperature",
        "u": "Cel",
        "v": 25.9
    },
    {
        "n": "humidity",
        "u": "%RH",
        "v": 50
    },
    {
        "n": "CO2Concentration",
        "u": "ppm",
        "v": 504
    },
    {
        "n": "pressure",
        "u": "Pa",
        "v": 101100
    },
    {
        "n": "VOC",
        "u": "ppm",
        "v": 8
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 4.08
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

0x1B payload

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "temperature",
        "u": "Cel",
        "v": 27.3
    },
    {
        "n": "humidity",
        "u": "%RH",
        "v": 68
    },
    {
        "n": "CO2Concentration",
        "u": "ppm",
        "v": 563
    },
    {
        "n": "pressure",
        "u": "Pa",
        "v": 101500
    },
    {
        "n": "VOC",
        "u": "ppm",
        "v": 1
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 7.53
    },
    {
        "n": "movementSensorActiveDuration",
        "u": "s",
        "v": 5940
    },
    {
        "n": "motion",
        "u": "count",
        "v": 29
    },
    {
        "n": "movementDetected",
        "t": 0,
        "vb": false
    },
    {
        "n": "movementDetected",
        "t": -60,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -120,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -180,
        "vb": false
    },
    {
        "n": "movementDetected",
        "t": -240,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -300,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -360,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -420,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -480,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -540,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -600,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -660,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -720,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -780,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -840,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -900,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -960,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1020,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1080,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1140,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1200,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1260,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1320,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1380,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1440,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1500,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1560,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1620,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1680,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1740,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1800,
        "vb": true
    },
    {
        "n": "movementDetected",
        "t": -1860,
        "vb": false
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]
