Streamline M2M

PreviousStreamline LoRaNextViloc

Last updated 5 months ago

Was this helpful?

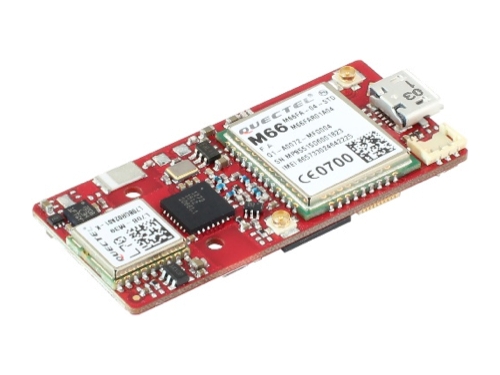

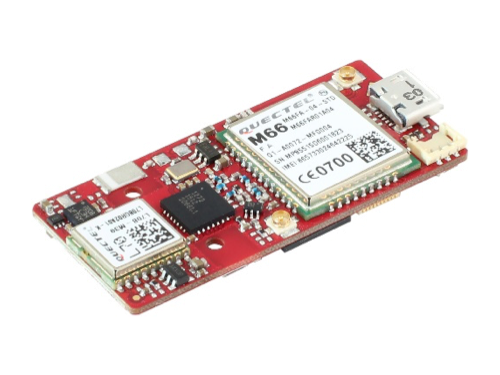

Streamline M2M

For all streamline M2M devices.

  • Supported network type(s): KPNSTREAMLINEM2M

  • Device Specification ID: supported-streamline-m2m

  • Device Specification UUID: 1ee3544d-1f5e-4d70-aba7-b50e80bad402

Decoders
decoderSpecificationUUID
Description

› Decoded Streamline M2M data

cf36febd-ba2e-4d1b-bbda-da4b6dbf2ca3

Decoder for selection of Streamline M2M data.

› Decoded Streamline M2M data (v2)

b5becc8a-ff52-5d2d-85ee-42b03a852bc4

Decoder for selection of Streamline M2M data.

› Decoded Streamline M2M data

Decoder for selection of Streamline M2M data.

Expected SenML records

name
type
unit

accelerationX

number

m/s2

accelerationY

number

m/s2

accelerationZ

number

m/s2

altitude

number

m

altitudeMargin

number

m

batteryVoltage

number

V

firmwareVersion

string

string

gpsTime

number

s

gsmNetworkId

string

string

heading

number

rad

latitude

number

lat

longitude

number

lon

phoneNumber

string

string

radius

number

m

temperature

number

Cel

velocity

number

m/s

› Decoded Streamline M2M data (v2)

Decoder for selection of Streamline M2M data.

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryVoltage

number

V

3.59

firmwareVersion

string

"474"

gpsTime

number

s

1664810842.4

heading

number

rad

0.7148868616168774

latitude

number

lat

51.90717

longitude

number

lon

4.48940

radius

number

m

velocity

number

m/s

Example SenML

[
    {
        "bn": "urn:dev:IMEI:999999999000090:",
        "bt": 1664810824.4,
        "n": "batteryVoltage",
        "u": "V",
        "v": 3.62
    },
    {
        "n": "firmwareVersion",
        "vs": "474"
    },
    {
        "n": "gpsTime",
        "u": "s",
        "v": 1664810842.4
    },
    {
        "n": "heading",
        "u": "rad",
        "v": 0.7148868616168774
    },
    {
        "n": "latitude",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "longitude",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "radius",
        "u": "m",
        "v": 0
    },
    {
        "n": "velocity",
        "u": "m/s",
        "v": 0
    }
]

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

Geolocation and Local Gateway
Understanding and Interpreting SenML Data
