KPN LocationTag V

PreviousKPN LocationTag III v4NextKPN LocationTag VI

Last updated 5 months ago

Was this helpful?

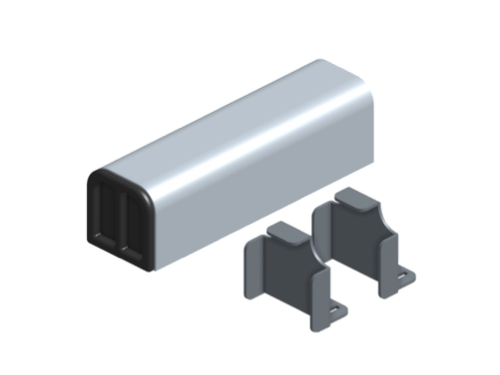

KPN LocationTag V

Also known as StreamLineTM-2001/P1A5.

  • Supported network type(s): KPNLORA

  • Device Specification ID: kpn-locationtag-v

  • Device Specification UUID: be8617b8-831c-4781-84ed-d535b862eace

Decoders
decoderSpecificationUUID
Description

+ LoRa Geolocation data

ec67cf00-68c2-4caa-bbd2-9d3454453295

+ Location by LoRa On Premises Gateway reception

d9c25a43-e073-4c0f-a488-b12119462b84

› Decoded payload for Asset Tracking application

5cf4f661-d764-4986-bd62-4b68ffc627e7

Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application.

› Decoded payload for Asset Tracking application (v2)

b2b9da8f-761e-599f-8464-3a916d54b6b8

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

› Decoded payload with motion indication

b56341ae-6ab5-4b8d-a4aa-790b7a9e2ffa

Decoder for Streamline LoRa devices configured with motion indicator configuration.

› Decoded payload with motion indication (v2)

e36ca071-eb67-5bf4-93de-0efa2ca087ea

Decoder for Streamline LoRa devices configured with motion indicator configuration.

+ LoRa Geolocation data

Expected SenML outputs

name
type/unit
example
description

locOrigin

string

KPNLORA

indicates the origin of the location data

latitude

numeric

51.79

longitude

numeric

4.68

radius

m

319

locAccuracy

%

locPrecision

%

locTime

timestamp

1637165561

Example SenML-message

This location info can be merged with the payload of the device

[
  {
    "bn": "urn:dev:DEVEUI:A41163C212345678:",
    "bt": 1637165561
  },
  {
    "n": "locOrigin",
    "vs": "KPNLORA"
  },
  {
    "n": "latitude",
    "u": "lat",
    "v": 51.794884
  },
  {
    "n": "longitude",
    "u": "lon",
    "v": 4.687986
  },
  {
    "n": "radius",
    "u": "m",
    "v": 319.730194
  },
  {
    "n": "locAccuracy",
    "u": "%",
    "v": 9999
  },
  {
    "n": "locPrecision",
    "u": "%",
    "v": 9999
  },
  {
    "n": "locTime",
    "vs": "1637165561192"
  }
]

+ Location by LoRa On Premises Gateway reception

› Decoded payload for Asset Tracking application

Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application.

Expected SenML outputs

name
type/unit
example
description

DvLon

numeric

5.8

Longitude

DvLat

numeric

51.8

Latitude

Speed

m/s

0.0

Heading

rad

3.316

IoButt

numeric

1.0

IoRxd

numeric

1.0

IoMot

numeric

1.0

Io31

numeric

1.0

AccX

numeric

-1.3

Acceleration X

AccY

numeric

-0.5

Acceleration Y

AccZ

numeric

3.0

Acceleration Z

CompX

numeric

0.0

Compass X

CompY

numeric

0.0

Compass Y

CompZ

numeric

0.0

Compass Z

Temp

Cel

9.5

Temperature

VBat

V

3.6

Battery Voltage

TIME_ORIGINE

string

THINGSENGINE

Example SenML-message

[
	{
		"bn": "urn:dev:DEVEUI:7CC6C41000000457:",
		"bt": 1678778484
	},
	{
		"n": "DvLon",
		"u": "lon",
		"v": 5.82224
	},
	{
		"n": "DvLat",
		"u": "lat",
		"v": 51.85008
	},
	{
		"n": "Speed",
		"u": "m/s",
		"v": 0.0
	},
	{
		"n": "Heading",
		"u": "rad",
		"v": 3.316
	},
	{
		"n": "IoButt",
		"v": 1.0
	},
	{
		"n": "IoRxd",
		"v": 1.0
	},
	{
		"n": "IoMot",
		"v": 1.0
	},
	{
		"n": "Io31",
		"v": 0.0
	},
	{
		"n": "AccX",
		"u": "m/s2",
		"v": -9.9599
	},
	{
		"n": "AccY",
		"u": "m/s2",
		"v": -0.7661
	},
	{
		"n": "AccZ",
		"u": "m/s2",
		"v": -0.6129
	},
	{
		"n": "CompX",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "CompY",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "CompZ",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "Temp",
		"u": "Cel",
		"v": 9.5
	},
	{
		"n": "VBat",
		"u": "V",
		"v": 3.59
	},
	{
		"n": "TIME_ORIGIN",
		"vs": "THINGSENGINE"
	}
]

› Decoded payload for Asset Tracking application (v2)

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryVoltage

number

V

devEui

string

Not present in detail level 1 messages

DvLat

number

lat

Latitude

DvLon

number

lon

Longitude

firmwareCRC

string

Not present in detail level 1 messages

firmwareVersion

string

Not present in detail level 1 messages

gpsActiveStill

boolean

true

gpsFixStill

boolean

true

gpsModuleActive

boolean

true

Not present in detail level 1 messages

nfcScanned

boolean

true

nfcState

string

Not present in detail level 1 messages

nrOfLoraTransmissions

number

Not present in detail level 1 messages

orientationX

number

Not present in detail level 1 messages

orientationY

number

Not present in detail level 1 messages

powerupTime

number

min

Not present in detail level 1 messages

rotationCount

number

rotationLeft

number

Not present in detail level 1 messages

rotationRight

number

Not present in detail level 1 messages

settingsCRC

string

Not present in detail level 1 messages

status

string

Not present in detail level 1 messages

temperature

number

Cel

18.334

transmissionTime

number

s

Not present in detail level 1 messages

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "gpsActiveStill",
        "vb": true
    },
    {
        "n": "gpsFixStill",
        "vb": true
    },
    {
        "n": "nfcScanned",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3
    },
    {
        "n": "DvLat",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "DvLon",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "rotationCount",
        "v": 154
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 1
    },
    {
        "n": "firmwareVersion",
        "vs": "cdab"
    },
    {
        "n": "firmwareCRC",
        "vs": "2143"
    },
    {
        "n": "settingsCRC",
        "vs": "7698"
    },
    {
        "n": "gpsModuleActive",
        "vb": true
    },
    {
        "n": "nfcState",
        "vs": "NFC_OFF"
    },
    {
        "n": "powerupTime",
        "u": "min",
        "v": 872379
    },
    {
        "n": "transmissionTime",
        "u": "s",
        "v": 238792
    },
    {
        "n": "nrOfLoraTransmissions",
        "v": 55
    },
    {
        "n": "devEui",
        "vs": "babcdef012"
    },
    {
        "n": "rotationLeft",
        "v": 3407873
    },
    {
        "n": "rotationRight",
        "v": 1507507
    },
    {
        "n": "orientationX",
        "v": 122
    },
    {
        "n": "orientationY",
        "v": 12
    },
    {
        "n": "status",
        "vs": "9a"
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

› Decoded payload with motion indication

Decoder for Streamline LoRa devices configured with motion indicator configuration.

Expected SenML outputs

  • name
    type/unit
    example
    description

    DvLon

    numeric

    5.8

    Longitude

    DvLat

    numeric

    51.8

    Latitude

    Speed

    m/s

    0.0

    Heading

    rad

    3.316

    movementIndication

    string

    START

    STATIONARY, STOP, START, MOVING

    IoButt

    numeric

    1.0

    IoRxd

    numeric

    1.0

    IoMot

    numeric

    1.0

    Io31

    numeric

    1.0

    AccX

    numeric

    -1.3

    Acceleration X

    AccY

    numeric

    -0.5

    Acceleration Y

    AccZ

    numeric

    3.0

    Acceleration Z

    CompX

    numeric

    0.0

    CompY

    numeric

    0.0

    CompZ

    numeric

    0.0

    Temp

    Cel

    9.5

    Temperature

    VBat

    V

    3.6

    Battery Voltage

    TIME_ORIGINE

    string

    THINGSENGINE

Example SenML-message

[
	{
		"bn": "urn:dev:DEVEUI:7CC6C42600000272:",
		"bt": 1678778546
	},
	{
		"n": "DvLon",
		"u": "lon",
		"v": 6.92017
	},
	{
		"n": "DvLat",
		"u": "lat",
		"v": 52.75613
	},
	{
		"n": "Speed",
		"u": "m/s",
		"v": 0.0
	},
	{
		"n": "Heading",
		"u": "rad",
		"v": 2.862
	},
	{
		"n": "movementIndication",
		"vs": "START"
	},
	{
		"n": "GpsFix",
		"vs": "RECENT"
	},
	{
		"n": "IoButt",
		"v": 1.0
	},
	{
		"n": "IoRxd",
		"v": 1.0
	},
	{
		"n": "IoMot",
		"v": 1.0
	},
	{
		"n": "Io31",
		"v": 0.0
	},
	{
		"n": "AccX",
		"u": "m/s2",
		"v": -9.9599
	},
	{
		"n": "AccY",
		"u": "m/s2",
		"v": 1.6855
	},
	{
		"n": "AccZ",
		"u": "m/s2",
		"v": 0.0
	},
	{
		"n": "CompX",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "CompY",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "CompZ",
		"u": "T",
		"v": 0.0
	},
	{
		"n": "Temp",
		"u": "Cel",
		"v": 12.25
	},
	{
		"n": "VBat",
		"u": "V",
		"v": 3.59
	},
	{
		"n": "TIME_ORIGIN",
		"vs": "THINGSENGINE"
	}
]

› Decoded payload with motion indication (v2)

Decoder for Streamline LoRa devices configured with motion indicator configuration.

The following SenML records can be present, amongst others:

name
type
unit
example
description

AccX

number

m/s2

-1.3

Measured acceleration in the X-axis

AccY

number

m/s2

-0.5

Measured acceleration in the Y-axis

AccZ

number

m/s2

3.0

Measured acceleration in the Z-axis

CompX

number

T

0.0000010

Measured compass orientation in the X-axis

CompY

number

T

-0.001507

Measured compass orientation in the Y-axis

CompZ

number

T

-0.002638

Measured compass orientation in the Z-axis

DvLat

number

lat

51.90717

Latitude

DvLon

number

lon

4.48940

Longitude

GpsFix

string

"RECENT"

Either "RECENT" or "OUTDATED"

Heading

number

rad

3.316

Io31

number

1.0

arbitrary bit

IoButt

number

1.0

whether the Device's button was pressed

IoMot

number

1.0

whether the Device is in motion

IoRxd

number

1.0

Device's external digital i/o value

movementIndication

string

"STATIONARY"

Either "STATIONARY", "STOP", "START" or "MOVING"

Speed

number

m/s

4.12

Temp

string

Cel

7.0

Temperature

VBat

number

V

3.59

Battery voltage

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1701882708.84,
        "n": "DvLon",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "DvLat",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "Speed",
        "u": "m/s",
        "v": 4.12
    },
    {
        "n": "Heading",
        "u": "rad",
        "v": -3.944
    },
    {
        "n": "IoButt",
        "v": 1.0
    },
    {
        "n": "IoRxd",
        "v": 1.0
    },
    {
        "n": "IoMot",
        "v": 0.0
    },
    {
        "n": "Io31",
        "v": 0.0
    },
    {
        "n": "AccX",
        "u": "m/s2",
        "v": 9.5002
    },
    {
        "n": "AccY",
        "u": "m/s2",
        "v": 0.7661
    },
    {
        "n": "AccZ",
        "u": "m/s2",
        "v": 0.1532
    },
    {
        "n": "CompX",
        "u": "T",
        "v": 0.0000010
    },
    {
        "n": "CompY",
        "u": "T",
        "v": -0.001507
    },
    {
        "n": "CompZ",
        "u": "T",
        "v": -0.002638
    },
    {
        "n": "Temp",
        "u": "Cel",
        "v": 7.0
    },
    {
        "n": "movementIndication",
        "vs": "STATIONARY"
    },
    {
        "n": "GpsFix",
        "vs": "RECENT"
    },
    {
        "n": "VBat",
        "u": "V",
        "v": 3.59
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

Add data to messages where location could be calculated.

Add location data to messages that are received by known .

Add data to messages where location could be calculated.

Add location data to messages that are received by known .

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

LoRa Geolocation
LoRa On Premise Gateways
Geolocation and Local Gateway
Understanding and Interpreting SenML Data
Geolocation and Local Gateway
Understanding and Interpreting SenML Data
LoRa Geolocation
LoRa On Premise Gateways
