KPN LocationTag III v2

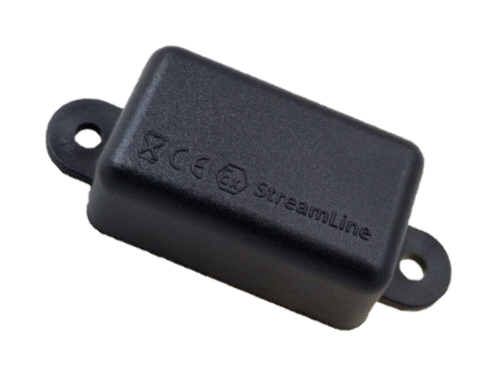

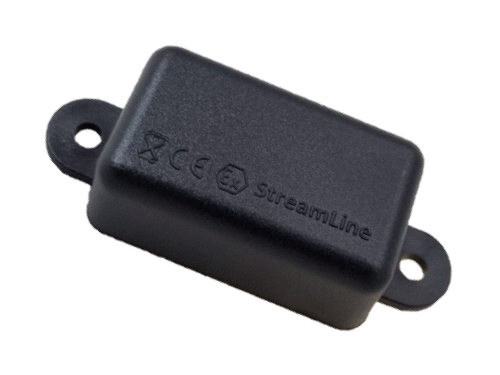

Streamline device configured to be used as Rotation Counter.

  • Supported network type(s): KPNLORA

  • Device Specification ID: kpn-locationtag-iii-v2

  • Device Specification UUID: 65f45046-10e5-4b97-9367-7f3f7a3fd7bd

Decoders
decoderSpecificationUUID
Description

+ LoRa Geolocation data

0e835f04-910a-4c11-8d23-08e9abef8b2c

› Decoded payload for Asset Tracking application

cc80b8ff-7b89-47c8-b158-91e724d27325

Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application. For P3K3 (loctagiiiv2) with RotationCount bytelength 2-49

› Decoded payload for Asset Tracking application (v2)

dd211ae8-f914-5eb2-8db8-319f46901822

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

› Decoded payload with location and rotation counter (p3k3)

06e1ab35-cfb8-49aa-bba4-370b526f079d

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount bytelength 2-49

› Decoded payload with location and rotation counter (p3k3) (v2)

96eb6d63-b272-5551-a4fb-f435f2130a17

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

+ LoRa Geolocation data

› Decoded payload for Asset Tracking application

Decoder outputting legacy SenML naming, compatible with Asset Tracking v1.x application. For P3K3 (loctagiiiv2) with RotationCount bytelength 2-49

Expected SenML records

name
type
unit

DvLat

number

lat

DvLon

number

lon

batteryVoltage

number

V

devEui

string

firmwareCRC

string

firmwareVersion

string

gpsActiveStill

boolean

gpsFixStill

boolean

gpsModuleActive

boolean

nfcScanned

boolean

nfcState

string

enum

nrOfLoraTransmissions

number

orientationX

number

orientationY

number

powerupTime

number

min

rotationCount

number

rotationLeft

number

rotationRight

number

settingsCRC

string

status

string

temperature

number

Cel

transmissionTime

number

s

› Decoded payload for Asset Tracking application (v2)

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryVoltage

number

V

devEui

string

Not present in detail level 1 messages

DvLat

number

lat

Latitude

DvLon

number

lon

Longitude

firmwareCRC

string

Not present in detail level 1 messages

firmwareVersion

string

Not present in detail level 1 messages

gpsActiveStill

boolean

true

gpsFixStill

boolean

true

gpsModuleActive

boolean

true

Not present in detail level 1 messages

nfcScanned

boolean

true

nfcState

string

Not present in detail level 1 messages

nrOfLoraTransmissions

number

Not present in detail level 1 messages

orientationX

number

Not present in detail level 1 messages

orientationY

number

Not present in detail level 1 messages

powerupTime

number

min

Not present in detail level 1 messages

rotationCount

number

rotationLeft

number

Not present in detail level 1 messages

rotationRight

number

Not present in detail level 1 messages

settingsCRC

string

Not present in detail level 1 messages

status

string

Not present in detail level 1 messages

temperature

number

Cel

18.334

transmissionTime

number

s

Not present in detail level 1 messages

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "gpsActiveStill",
        "vb": true
    },
    {
        "n": "gpsFixStill",
        "vb": true
    },
    {
        "n": "nfcScanned",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3
    },
    {
        "n": "DvLat",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "DvLon",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "rotationCount",
        "v": 154
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 1
    },
    {
        "n": "firmwareVersion",
        "vs": "cdab"
    },
    {
        "n": "firmwareCRC",
        "vs": "2143"
    },
    {
        "n": "settingsCRC",
        "vs": "7698"
    },
    {
        "n": "gpsModuleActive",
        "vb": true
    },
    {
        "n": "nfcState",
        "vs": "NFC_OFF"
    },
    {
        "n": "powerupTime",
        "u": "min",
        "v": 872379
    },
    {
        "n": "transmissionTime",
        "u": "s",
        "v": 238792
    },
    {
        "n": "nrOfLoraTransmissions",
        "v": 55
    },
    {
        "n": "devEui",
        "vs": "babcdef012"
    },
    {
        "n": "rotationLeft",
        "v": 3407873
    },
    {
        "n": "rotationRight",
        "v": 1507507
    },
    {
        "n": "orientationX",
        "v": 122
    },
    {
        "n": "orientationY",
        "v": 12
    },
    {
        "n": "status",
        "vs": "9a"
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

› Decoded payload with location and rotation counter (p3k3)

  • UUID: 06e1ab35-cfb8-49aa-bba4-370b526f079d

  • Description: Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount bytelength 2-49

  • Exchange: decoder.lora.streamline.exchange

Expected SenML outputs

name
type/unit
example
description

gpsActiveStill

boolean

true

gpsFixStill

boolean

true

nfcScanned

boolean

false

nfcScanned

boolean

false

batteryVoltage

V

2.96

latitude

numeric

52.15

longitude

numeric

6.72

rotationCount

numeric

266

temperature

Cel

21.0

firmwareVersion

not present in detail level 1 messages

firmwareCRC

not present in detail level 1 messages

settingsCRC

not present in detail level 1 messages

gpsModuleActive

boolean

false

not present in detail level 1 messages

nfcState

string

NFC_RW

not present in detail level 1 messages

powerupTime

min

not present in detail level 1 messages

transmissionTime

s

not present in detail level 1 messages

nrOfLoraTransmissions

numeric

not present in detail level 1 messages

devEui

string

not present in detail level 1 messages

rotationLeft

numeric

33.0

not present in detail level 1 messages

rotationRight

numeric

29.0

not present in detail level 1 messages

orientationX

numeric

255.0

not present in detail level 1 messages

orientationY

numeric

1.0

not present in detail level 1 messages

status

string

02

not present in detail level 1 messages

TIME_ORIGIN

string

THINGSENGINE

Example SenML-message - detail level 1

[
	{
		"bn": "urn:dev:DEVEUI:7CC6C43212345678:",
		"bt": 1678798438
	},
	{
		"n": "gpsActiveStill",
		"vb": true
	},
	{
		"n": "gpsFixStill",
		"vb": true
	},
	{
		"n": "nfcScanned",
		"vb": false
	},
	{
		"n": "batteryVoltage",
		"u": "V",
		"v": 2.95
	},
	{
		"n": "latitude",
		"u": "lat",
		"v": 52.15552
	},
	{
		"n": "longitude",
		"u": "lon",
		"v": 6.72049
	},
	{
		"n": "rotationCount",
		"v": 15.0
	},
	{
		"n": "temperature",
		"u": "Cel",
		"v": 11.0
	},
	{
		"n": "TIME_ORIGIN",
		"vs": "THINGSENGINE"
	}
]

Example SenML-message - detail level 2

[
	{
		"bn": "urn:dev:DEVEUI:7CC6C43212345678:",
		"bt": 1678798803
	},
	{
		"n": "gpsActiveStill",
		"vb": true
	},
	{
		"n": "gpsFixStill",
		"vb": true
	},
	{
		"n": "nfcScanned",
		"vb": false
	},
	{
		"n": "batteryVoltage",
		"u": "V",
		"v": 3.0
	},
	{
		"n": "latitude",
		"u": "lat",
		"v": 52.04075
	},
	{
		"n": "longitude",
		"u": "lon",
		"v": 4.408
	},
	{
		"n": "rotationCount",
		"v": 4.0
	},
	{
		"n": "temperature",
		"u": "Cel",
		"v": 16.0
	},
	{
		"n": "firmwareVersion",
		"vs": "10a8"
	},
	{
		"n": "firmwareCRC",
		"vs": "e865"
	},
	{
		"n": "settingsCRC",
		"vs": "36cd"
	},
	{
		"n": "gpsModuleActive",
		"vb": false
	},
	{
		"n": "nfcState",
		"u": "enum",
		"vs": "NFC_RW"
	},
	{
		"n": "powerupTime",
		"u": "min",
		"v": 152431.0
	},
	{
		"n": "transmissionTime",
		"u": "s",
		"v": 1080.0
	},
	{
		"n": "nrOfLoraTransmissions",
		"v": 576.0
	},
	{
		"n": "devEui",
		"vs": "3200001247"
	},
	{
		"n": "rotationLeft",
		"v": 33.0
	},
	{
		"n": "rotationRight",
		"v": 29.0
	},
	{
		"n": "orientationX",
		"v": 255.0
	},
	{
		"n": "orientationY",
		"v": 1.0
	},
	{
		"n": "status",
		"vs": "02"
	},
	{
		"n": "TIME_ORIGIN",
		"vs": "THINGSENGINE"
	}
]

› Decoded payload with location and rotation counter (p3k3) (v2)

Decoder for Streamline lora messages encoded as P3K3 (loctagiiiv2) with RotationCount (byte length 2-49).

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryVoltage

number

V

2.96

devEui

string

"0123456789012345"

not present in detail level 1 messages

firmwareCRC

string

"2143"

not present in detail level 1 messages

firmwareVersion

string

"cdab"

not present in detail level 1 messages

gpsActiveStill

boolean

true

gpsFixStill

boolean

true

gpsModuleActive

boolean

true

not present in detail level 1 messages

latitude

number

lat

51.90717

longitude

number

lon

4.48940

nfcScanned

boolean

true

nfcState

string

"NFC_RW"

not present in detail level 1 messages

nrOfLoraTransmissions

number

not present in detail level 1 messages

orientationX

number

255.0

not present in detail level 1 messages

orientationY

number

1.0

not present in detail level 1 messages

powerupTime

number

min

not present in detail level 1 messages

rotationCount

number

266

rotationLeft

number

33.0

not present in detail level 1 messages

rotationRight

number

29.0

not present in detail level 1 messages

settingsCRC

string

"7698"

not present in detail level 1 messages

status

string

"9a"

not present in detail level 1 messages

temperature

number

Cel

21.0

transmissionTime

number

s

not present in detail level 1 messages

Example SenML

14 byte payload

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "gpsActiveStill",
        "vb": true
    },
    {
        "n": "gpsFixStill",
        "vb": false
    },
    {
        "n": "nfcScanned",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3.02
    },
    {
        "n": "latitude",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "longitude",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "rotationCount",
        "v": 124
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 3
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

49 byte payload

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "gpsActiveStill",
        "vb": true
    },
    {
        "n": "gpsFixStill",
        "vb": true
    },
    {
        "n": "nfcScanned",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3
    },
    {
        "n": "latitude",
        "u": "lat",
        "v": 51.90717
    },
    {
        "n": "longitude",
        "u": "lon",
        "v": 4.48940
    },
    {
        "n": "rotationCount",
        "v": 154
    },
    {
        "n": "temperature",
        "u": "Cel",
        "v": 1
    },
    {
        "n": "firmwareVersion",
        "vs": "cdab"
    },
    {
        "n": "firmwareCRC",
        "vs": "2143"
    },
    {
        "n": "settingsCRC",
        "vs": "7698"
    },
    {
        "n": "gpsModuleActive",
        "vb": true
    },
    {
        "n": "nfcState",
        "vs": "NFC_OFF"
    },
    {
        "n": "powerupTime",
        "u": "min",
        "v": 872379
    },
    {
        "n": "transmissionTime",
        "u": "s",
        "v": 238792
    },
    {
        "n": "nrOfLoraTransmissions",
        "v": 55
    },
    {
        "n": "devEui",
        "vs": "0123456789012345"
    },
    {
        "n": "rotationLeft",
        "v": 3407873
    },
    {
        "n": "rotationRight",
        "v": 1507507
    },
    {
        "n": "orientationX",
        "v": 122
    },
    {
        "n": "orientationY",
        "v": 12
    },
    {
        "n": "status",
        "vs": "9a"
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

Add data to messages where location could be calculated.

Add data to messages where location could be calculated.

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

This decoder also decodes data.

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

LoRa Geolocation
Geolocation and Local Gateway
Understanding and Interpreting SenML Data
Geolocation and Local Gateway
Understanding and Interpreting SenML Data
LoRa Geolocation
