KPN LocationTag WS

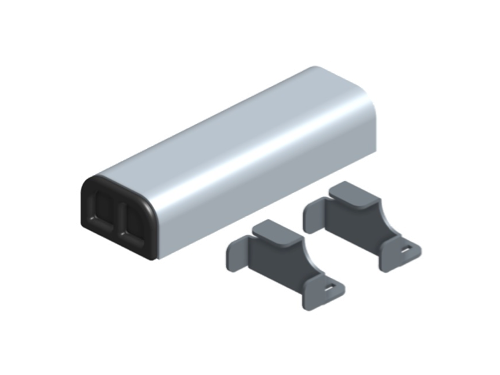

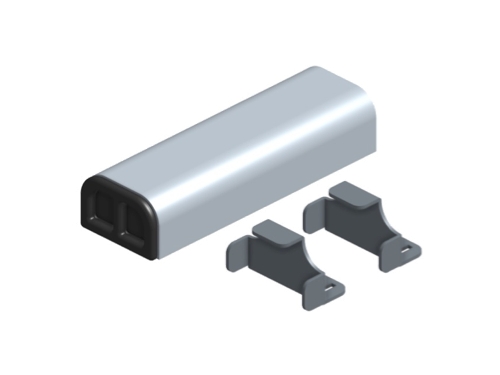

A small device using WiFi scanning for localisation.

  • Supported network type(s): KPNLORA

  • Device Specification ID: kpn-locationtag-ws

  • Device Specification UUID: 2c05af48-434e-4806-a0f3-837360f4f3cb

Decoders
decoderSpecificationUUID
Description

+ LoRa Geolocation data

decc2f80-10b3-4c7c-8a47-a2f704272e6e

= Raw LoRa payload

a1125bd2-1aaf-4284-b866-72e91a1a6862

Forward the raw LoRa payload and port number without decoding.

= Raw LoRa payload (v2)

2186c46a-04b7-5f24-a0ab-c46ebbd009f9

Forward the raw LoRa payload and port number without decoding.

= Raw LoRa payload Extended

3a1af5c6-6499-48a0-b3ff-682e5e496cea

Forward the raw LoRa payload and other metadata without decoding.

= Raw LoRa payload Extended (v2)

049ef907-3732-586e-b638-cdaddafa66c9

Forward the raw LoRa payload and lora network metadata without decoding.

› Decoded payload with WiFi scan results

94fb4c11-6d05-481d-b3e6-58a86c2bcea6

Decoder for Streamline LoRa message type 0xF1.

› Decoded payload with WiFi scan results (v2)

94b73332-ff18-59e5-873a-5ef7e8fad583

Decoder for Streamline LoRa message type 0xF1.

+ LoRa Geolocation data

= Raw LoRa payload

Forward the raw LoRa payload and port number without decoding.

Expected SenML records

name
type
unit

payload

string

port

number

= Raw LoRa payload (v2)

Forward the raw LoRa payload and port number without decoding.

The following SenML records can be present, amongst others:

name
type
unit
example
description

payload

string

"4D985C495AC4D8C9682CFD"

The LoRa hex payload

port

number

200

The LoRa port used to send this uplink

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "payload",
        "vs": "4D985C495AC4D8C9682CFD"
    },
    {
        "n": "port",
        "v": 1
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

= Raw LoRa payload Extended

Forward the raw LoRa payload and other metadata without decoding.

Expected SenML records

name
type
unit

ADRbit

number

Channel

string

DevLrrCnt

number

FCntDn

number

FCntUp

number

FPort

number

LrrESP

string

LrrRSSI

string

LrrSNR

string

SpFact

number

SubBand

string

payload_hex

string

Raw LoRa payload Extended (v2)

Forward the raw LoRa payload and lora network metadata without decoding.

Fixes from '= Raw LoRa payload Extended':

  • LrrRSSI is changed to a number.

  • LrrSNR is changed to a number.

  • LrrESP is changed to a number.

The following SenML records can be present, amongst others:

name
type
unit
example
description

ADRbit

number

0

Adaptive Data Rate indicator

Channel

string

LC255

Lora channel of the transmission

DevLrrCnt

number

0

Amount of gateways that received the message

FCntDn

number

21725

The downlink framecounter

FCntUp

number

30117

The uplink framecounter

LrrRSSI

number

0

Received Signal Strength Indicator

LrrSNR

number

0

Signal to Noise Ratio

payload

string

"4D985C495AC4D8C9682CFD"

raw hex payload string

port

number

1

LoRa port used

SpFact

number

9

Spreading factor used

SubBand

string

"G0"

Lora band of the transmission

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "payload",
        "vs": "8ca683bd93124178afc5ff"
    },
    {
        "n": "port",
        "v": 1
    },
    {
        "n": "FCntUp",
        "v": 30117
    },
    {
        "n": "FCntDn",
        "v": 21725
    },
    {
        "n": "LrrRSSI",
        "v": 0
    },
    {
        "n": "LrrSNR",
        "v": 0
    },
    {
        "n": "DevLrrCnt",
        "v": 0
    },
    {
        "n": "SpFact",
        "v": 9
    },
    {
        "n": "SubBand",
        "vs": "G0"
    },
    {
        "n": "Channel",
        "vs": "LC255"
    },
    {
        "n": "ADRbit",
        "v": 0
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

› Decoded payload with WiFi scan results

Decoder for Streamline LoRa message type 0xF1.

› Decoded payload with WiFi scan results (v2)

Decoder for Streamline LoRa message type 0xF1.

The following SenML records can be present, amongst others:

name
type
unit
example
description

batteryLevelLow

boolean

false

Indicates if the battery voltage has been below the threshold

batteryVoltage

number

V

firmwareCRC

string

Firmware info, only sent after device boot

firmwareVersion

string

Firmware info, only sent after device boot

mode

string

"active"

Operation modus. Either "production", "active", "presales" or "missing")

settingsCRC

string

Settings info, only sent after device boot

Example SenML

[
    {
        "bn": "urn:dev:DEVEUI:0123456789012345:",
        "bt": 1693136532.83,
        "n": "mode",
        "vs": "active"
    },
    {
        "n": "batteryLevelLow",
        "vb": false
    },
    {
        "n": "batteryVoltage",
        "u": "V",
        "v": 3.59
    },
    {
        "n": "firmwareVersion",
        "vs": "0443"
    },
    {
        "n": "firmwareCRC",
        "vs": "397F"
    },
    {
        "n": "settingsCRC",
        "vs": "A3E5"
    },
    {
        "n": "timeOrigin",
        "vs": "NETWORK"
    }
]

Add data to messages where location could be calculated.

Add data to messages where location could be calculated.

This decoder also decodes data.
