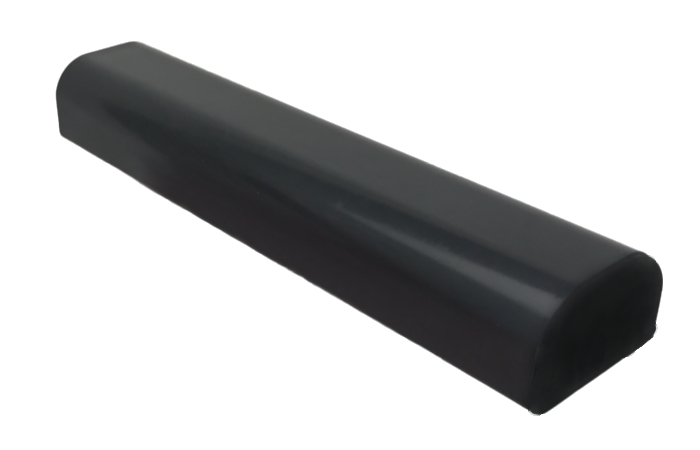

KPN Global Tracker Autonomous

A battery powered 2G/LTE-M device with GPS.

  • Supported network type(s): KPNSTREAMLINEM2M

  • Device Specification ID: kpn-global-tracker-autonomous

  • Device Specification UUID: e60e392e-c738-49ae-839e-54363638ae88

Decoders
decoderSpecificationUUID
Description

Decoded M2M Data for GlobalTracker Autonomous

d1f88fc7-cb8c-56ad-8f51-abd3d68e130c

Decoder for M2M KPN Global Tracker Autonomous devices.

Decoded M2M Data for GlobalTracker Autonomous

Decoder for M2M KPN Global Tracker Autonomous devices.

The following SenML records can be present, amongst others:

name
type
unit
example
description

altitude

m

The measured altitude

batteryVoltage

number

V

3.59

firmwareVersion

string

not present in detail level 1 messages

gpsTime

number

s

Unix EPOCH time in seconds

gsmNetworkId

number

eventDescription

number

  • Start moving

  • Stop moving

  • While moving

  • While not moving

Description of the device event. Not present in detail level 1 messages.

eventId

number

  • 40 (Stop moving)

  • 41 (Start moving)

  • 44 (While moving)

  • 45 (While not moving)

Id of the device event. Not present in detail level 1 messages

gpsStatus

number

  • 0 (OK)

  • 1 (Speed/heading invalid)

  • 32 (Accuracy not met)

  • 33 (Accuracy not met + Speed/heading invalid)

Identifier indicating the GPS Status

gpsNotes

number

  • OK

  • Accuracy not met

  • Speed/heading invalid

  • Accuracy not met + Speed/heading invalid

Description of the GPS Status

heading

number

rad

Direction in radials. Not present in detail level 1 messages

latitude

number

lat

Latitude of the device. Not present in detail level 1 messages

longitude

number

lon

Longitude of the device. Not present in detail level 1 messages

radius

number

m

Radius indicating the precision of the positition. Not present in detail level 1 messages

switch

number

  • 0 (Position)

  • 53 (SV_CountersUser)

  • 64 (SV_Network)

  • 77 (TimeAlive)

Identifier indicating the record-type. In case Switch=77, there has been no GPS Fix and the Geo coordinates belong to the previous GPS Fix.

switchName

number

  • SV_Position

  • SV_CountersUser

  • SV_Network

  • SV_TimeAlive

Name of this record-type.

temperature

number

Cel

The measured temperature

velocity

number

m/s

Velocity of the device. Not present in detail level 1 messages

Example SenML

Detail level 1 (SV_Network)

[
  {
    "bn": "urn:dev:IMEI:863740062764946:",
    "bt": 1664818024.4,
    "n": "batteryVoltage",
    "u": "V",
    "v": 3.87
  },
  {
    "n": "firmwareVersion",
    "vs": "69"
  },
  {
    "n": "gpsTime",
    "u": "s",
    "v": 1696499019.6799998
  },
  {
    "n": "gsmNetworkId",
    "vs": "0"
  },
  {
    "n": "switch",
    "vs": "64"
  },
  {
    "n": "switchName",
    "vs": "SV_Network"
  }
]

Detail level 2 (SV_TimeAliveTripMeters)

[
  {
    "n": "batteryVoltage",
    "u": "V",
    "v": 4.16,
    "bn": "urn:dev:IMEI:863740069962824:",
    "bt": 1664818024.4
  },
  {
    "n": "eventDescription",
    "vs": "Start moving"
  },
  {
    "n": "eventId",
    "vs": "41"
  },
  {
    "n": "firmwareVersion",
    "vs": "564"
  },
  {
    "n": "gpsNotes",
    "vs": "OK"
  },
  {
    "n": "gpsStatus",
    "vs": "0"
  },
  {
    "n": "gpsTime",
    "u": "s",
    "v": 1696854457.92
  },
  {
    "n": "heading",
    "u": "rad",
    "v": 5.897816608339239
  },
  {
    "n": "latitude",
    "u": "lat",
    "v": 52.0405
  },
  {
    "n": "longitude",
    "u": "lon",
    "v": 4.40833
  },
  {
    "n": "radius",
    "u": "m",
    "v": 9.5
  },
  {
    "n": "switch",
    "vs": "36"
  },
  {
    "n": "switchName",
    "vs": "SV_TimeAliveTripMeters"
  },
  {
    "n": "velocity",
    "u": "m/s",
    "v": 0
  }
]

Detail level 3 (SV_Position)

[
  {
    "bn": "urn:dev:IMEI:863740062764946:",
    "bt": 1664818024.4,
    "n": "altitude",
    "u": "m",
    "v": 63
  },
  {
    "n": "batteryVoltage",
    "u": "V",
    "v": 3.87
  },
  {
    "n": "eventDescription",
    "vs": "?1?"
  },
  {
    "n": "eventId",
    "vs": "1"
  },
  {
    "n": "firmwareVersion",
    "vs": "69"
  },
  {
    "n": "gpsNotes",
    "vs": "OK"
  },
  {
    "n": "gpsStatus",
    "vs": "0"
  },
  {
    "n": "gpsTime",
    "u": "s",
    "v": 1696499003.04
  },
  {
    "n": "heading",
    "u": "rad",
    "v": 0
  },
  {
    "n": "latitude",
    "u": "lat",
    "v": 52.04044
  },
  {
    "n": "longitude",
    "u": "lon",
    "v": 4.40817
  },
  {
    "n": "radius",
    "u": "m",
    "v": 9.5
  },
  {
    "n": "switch",
    "vs": "0"
  },
  {
    "n": "switchName",
    "vs": "SV_Position"
  },
  {
    "n": "temperature",
    "u": "Cel",
    "v": 22.5
  },
  {
    "n": "velocity",
    "u": "m/s",
    "v": 0
  }
]

SenML can be structured in different ways, and we do not guarantee the examples below will look the same as what you will receive on your Destination. To make sure you can handle the SenML optimally, take a look at our documentation about .

Understanding and Interpreting SenML Data
